GD 850 floor spring
Model GD 850
Available in the PhilippinesThe GD 850 provides concealed control for standard double-action glass and timber doors. It supports doors up to 1050 mm wide and 85 kg, with adjustable closing and latching speed and 90° hold-open.
- Maximum door weight
- 85 kg
- Maximum door width
- 1050 mm
- Door closing angle
- Up to 120°
- Hold-open angle
- 90°
Prices are set by authorised retailers. Confirm stock and finish with your retailer.
Why the GD 850
Wider-door capacity
Supports standard double-action doors up to 1050 mm wide.
Adjustable closing and latching
Separate valves tune the closing cycle and final latch.
Holds open at 90°
Keeps the door open when an unobstructed passage is required.
Flexible package options
Choose the floor spring alone, an aluminium-accessory package or a patch-fitting package.
Suits
- Double-action glass doors
- Double-action timber doors
- Doors up to 1050 mm wide
- Doors up to 85 kg
- Low-traffic areas
Specifications
| Product type | Floor spring |
|---|---|
| Maximum door weight | 85 kg |
| Maximum door width | 1050 mm |
| Door closing angle | Up to 120° |
| Spring strength | Size 3 or size 4 |
| Maximum closing speed | Fixed |
| Closing speed | Adjustable via valve |
| Latching speed | Adjustable via valve |
| Hold-open angle | 90° |
| Handing | Non-handed version available |
| Length | 307 mm |
| Width | 108 mm |
| Recommended use | Low-traffic areas |
| Patch-fitting finishes | Satin stainless steel or polished stainless steel |
Options and product numbers
Each option has its own product number. Quote it when you ask a retailer.
GD 850 size 3 hold-open floor spring
- Type
- Floor spring only
- Finish
- [Cover finish to be confirmed]
- Product number
- 1405190
- Availability
- Available

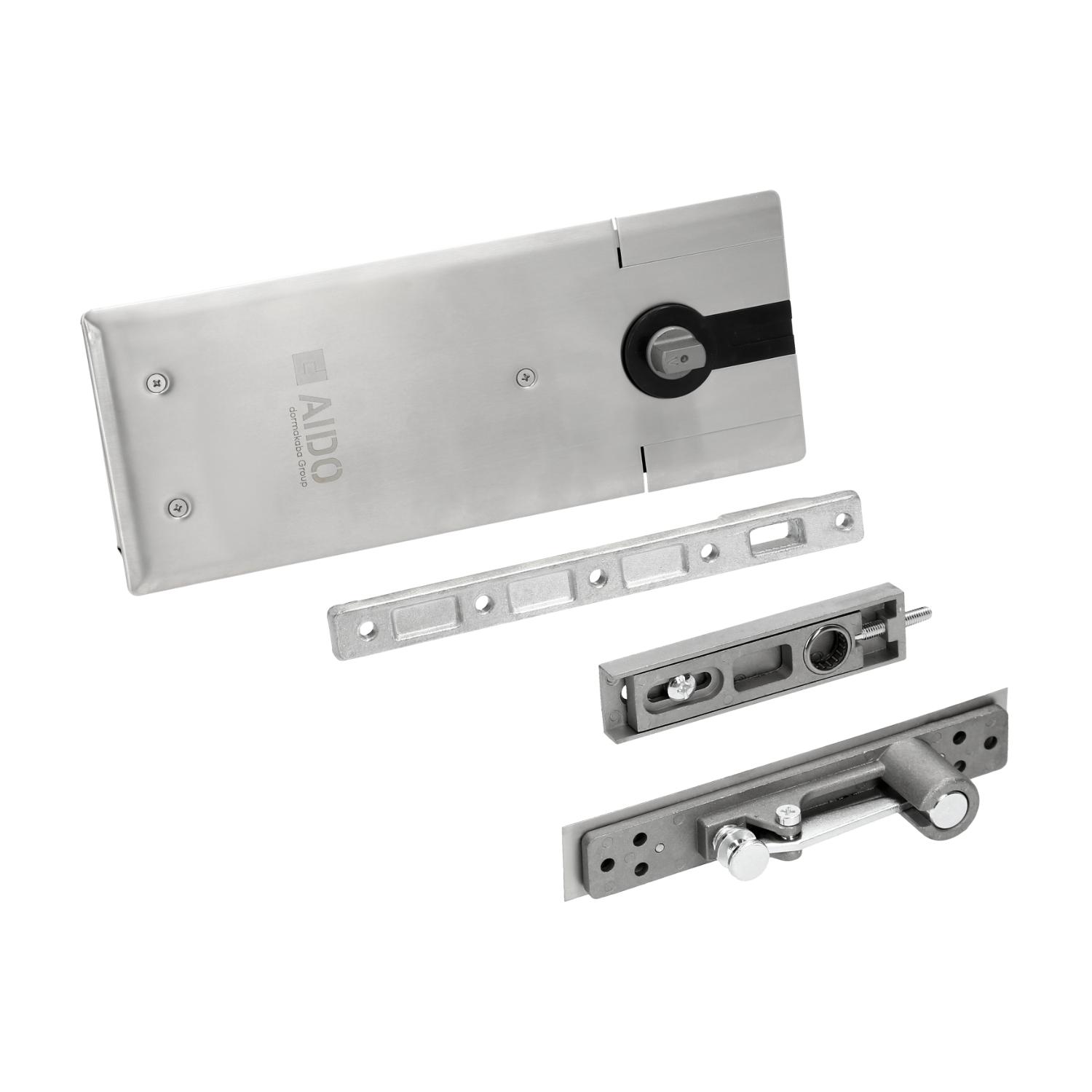

GD 850 size 3 hold-open floor spring with aluminium-door accessories
- Type
- Aluminium-accessory package
- Finish
- [Accessory finish to be confirmed]
- Product number
- 1405182
- Availability
- Available

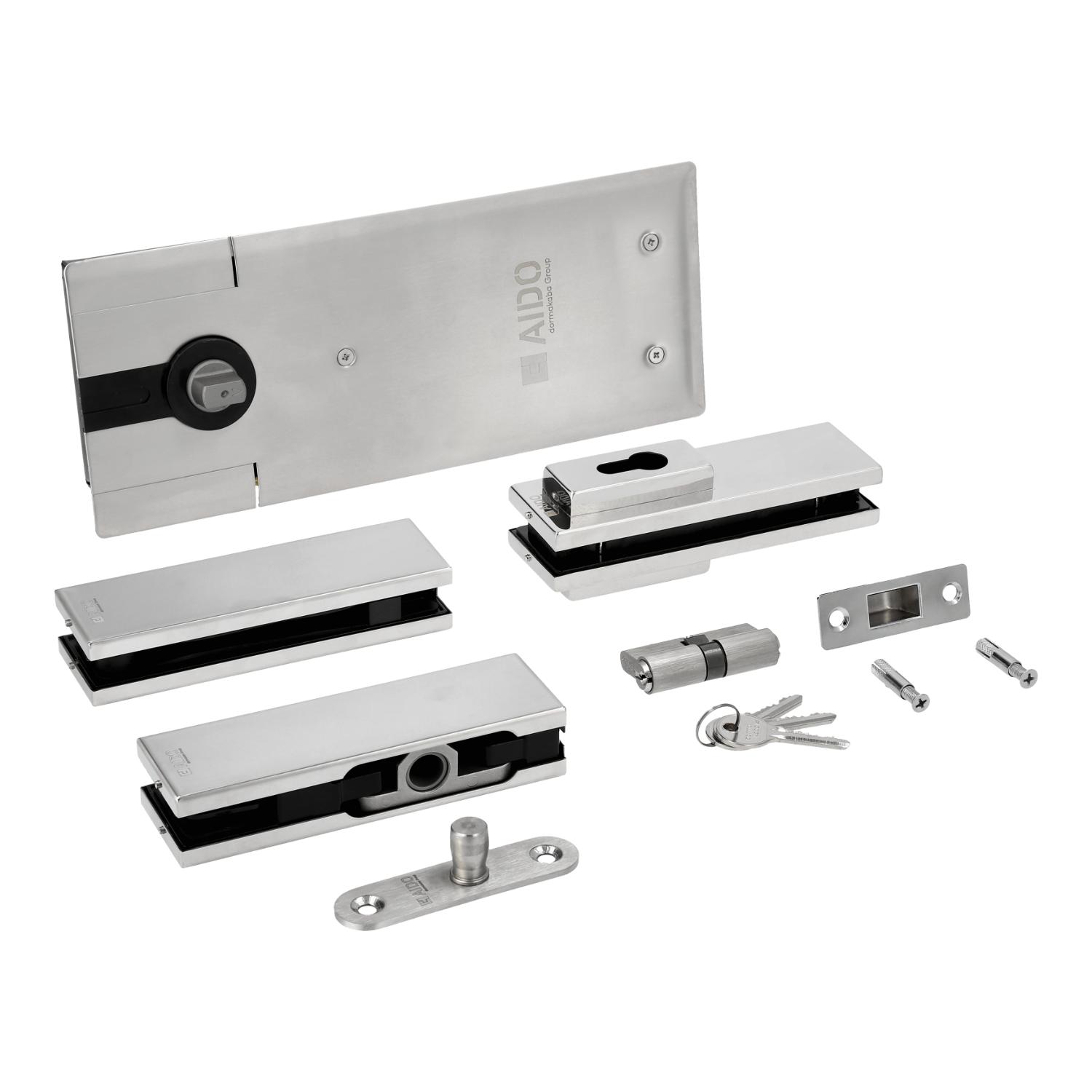

GD 850 size 3 hold-open floor spring with PSS patch-fitting package
- Type
- Patch-fitting package
- Finish
- Polished stainless steel (PSS)
- Product number
- 1405181
- Availability
- Available
Documents and care
- Data sheet
GD 850 floor spring data sheet
Data sheet · PDF · [Size]
- Installation guide
GD 850 floor spring installation guide
Installation guide · PDF · [Size]
- Brochure
AIDO Philippines product brochure
Brochure · PDF · [Size]
Buy from an authorised retailer
Authorised retailers can confirm stock, finishes and price for the GD 850.
Find a retailerAsk us about the GD 850
Questions about door size, weight or installation? Send us the details.
