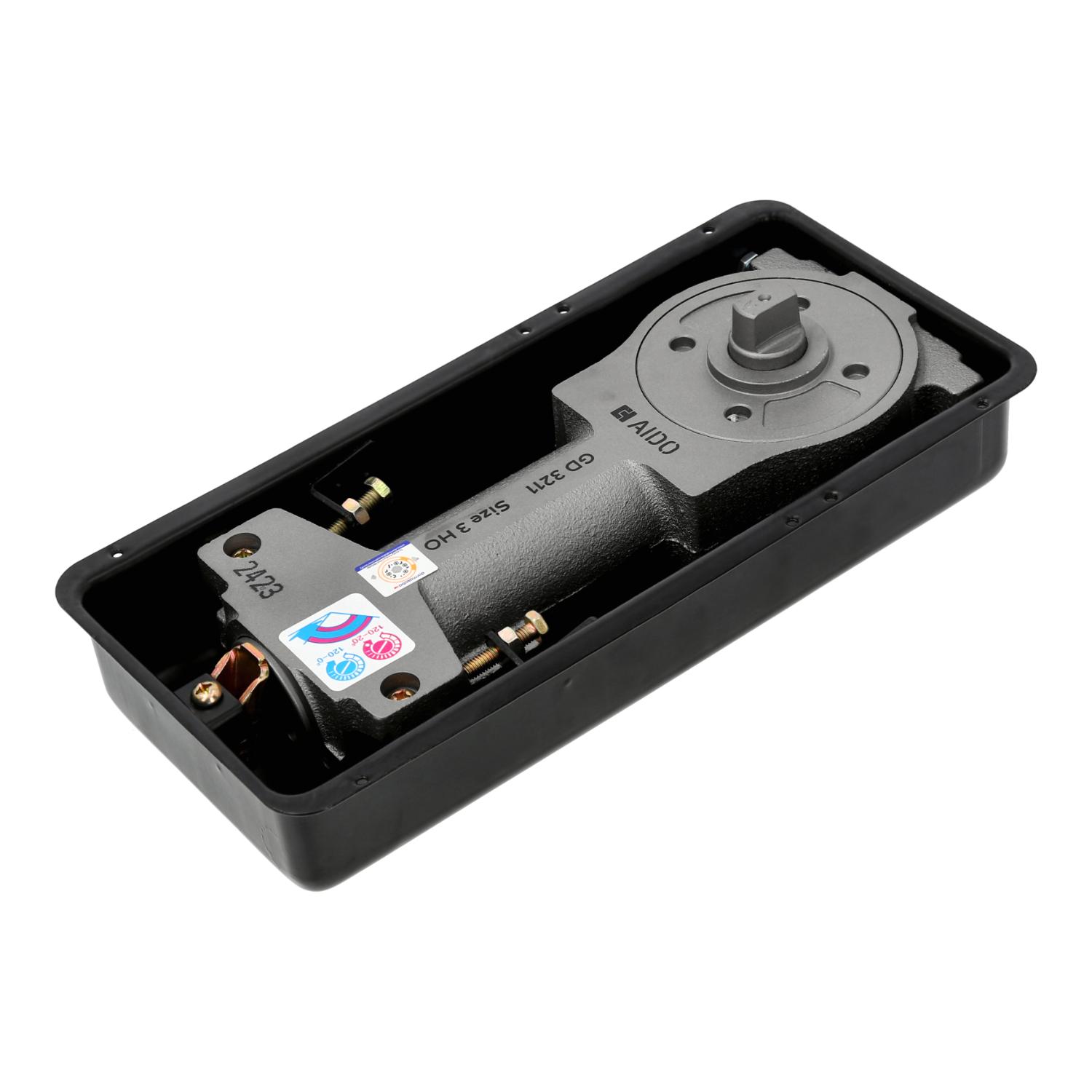

GD 3211 floor spring
Model GD 3211
Available in the PhilippinesThe GD 3211 closes double-action glass and timber doors up to 1000 mm wide and 85 kg, with adjustable closing and latching speed and a 90° hold-open.
- Maximum door weight
- 85 kg
- Maximum door width
- 1000 mm
- Door closing angle
- Up to 120°
- Hold-open angle
- 90°
Prices are set by authorised retailers. Confirm stock and finish with your retailer.
Why the GD 3211
Adjustable closing and latching speed
Separate valves set how fast the door closes and how gently it latches.
Holds open at 90°
The door can be held open at 90° when a clear way through is needed.
Swings both ways
Made for standard double-action doors that open inward and outward.
Flexible package options
Choose the floor spring alone, an aluminium-accessory package or a PSS patch-fitting package.
Suits
- Double-action glass doors
- Double-action timber doors
- Doors up to 1000 mm wide
- Doors up to 85 kg
- Low-traffic areas
Specifications
| Product type | Floor spring |
|---|---|
| Maximum door weight | 85 kg |
| Maximum door width | 1000 mm |
| Door closing angle | Up to 120° |
| Spring strength | Size 3 or size 4 |
| Maximum closing speed | Fixed |
| Closing speed | Adjustable via valve |
| Latching speed | Adjustable via valve |
| Hold-open angle | 90° |
| Handing | Non-handed version available |
| Length | 298 mm |
| Width | 148 mm |
| Height | 48 mm |
| Glass thickness for patch fittings | 10 to 12 mm |
| Recommended use | Low-traffic areas |
Options and product numbers
Each option has its own product number. Quote it when you ask a retailer.
GD 3211 size 3 hold-open floor spring
- Type
- Floor spring only
- Finish
- [Cover finish to be confirmed]
- Product number
- 1405191
- Availability
- Available

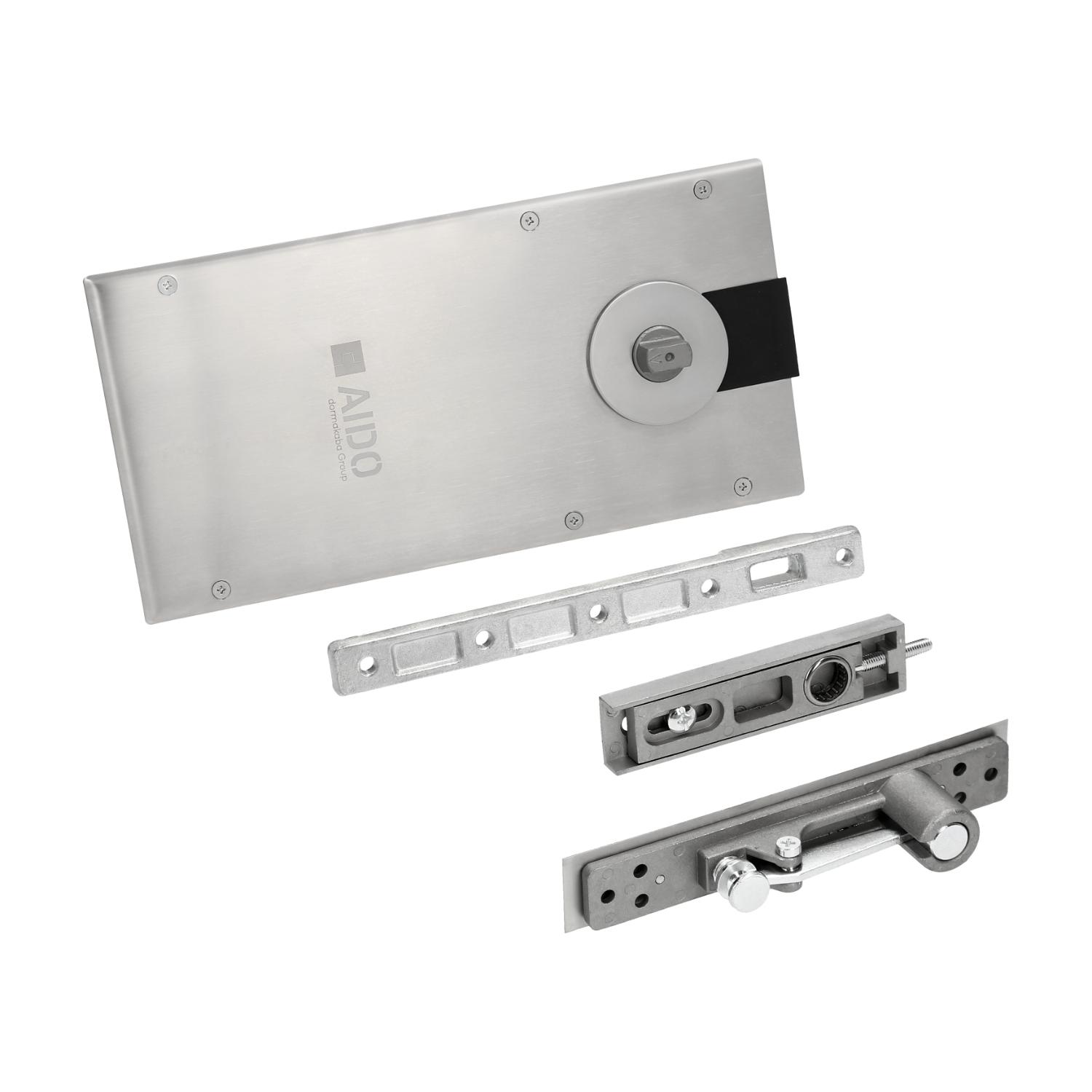

GD 3211 size 3 hold-open floor spring with aluminium-door accessories
- Type
- Aluminium-accessory package
- Finish
- [Accessory finish to be confirmed]
- Product number
- 1405184
- Availability
- Available
GD 3211 size 3 hold-open floor spring with PSS patch-fitting package
- Type
- Patch-fitting package
- Finish
- Polished stainless steel (PSS)
- Product number
- 1405183
- Availability
- Available
Documents and care
- Data sheet
GD 3211 floor spring data sheet
Data sheet · PDF · [Size]
- Installation guide
GD 3211 floor spring installation guide
Installation guide · PDF · [Size]
- Brochure
AIDO Philippines product brochure
Brochure · PDF · [Size]
Buy from an authorised retailer
Authorised retailers can confirm stock, finishes and price for the GD 3211.
Find a retailerAsk us about the GD 3211
Questions about door size, weight or installation? Send us the details.
