AD 325 door closer
Model AD 325
Available in the PhilippinesThe AD 325 delivers controlled closing in a compact surface-mounted format. It suits standard, parallel-arm and frame installation, with regular-arm and hold-open slide-arm package options for the Philippines range.
- Product type
- Surface-mounted door closer
- Handing
- Non-handed
- Closing speed
- Adjustable between 180° or 120° and 15°
- Latching action
- Adjustable between 15° and 0°
Prices are set by authorised retailers. Confirm stock and finish with your retailer.
Why the AD 325
Flexible installation
Suitable for standard, parallel-arm and frame installation.
Adjustable closing
Set the closing cycle to suit the door and everyday use.
Adjustable latching
Fine-tune the final closing action for a reliable latch.
Non-handed
One closer can be used for left- or right-handed doors.
Suits
- Timber doors
- Aluminium doors
- Steel doors
- Standard, parallel-arm and frame installation
- Doors up to 950 mm wide [subject to final approval]
Specifications
| Product type | Surface-mounted door closer |
|---|---|
| Handing | Non-handed |
| Mounting options | Standard, parallel-arm and frame installation |
| Closing speed | Adjustable between 180° or 120° and 15° |
| Latching action | Adjustable between 15° and 0° |
| Hold-open | Available with hold-open arm |
| Door materials | Timber, aluminium and steel |
| Finish | Silver |
Options and product numbers
Each option has its own product number. Quote it when you ask a retailer.

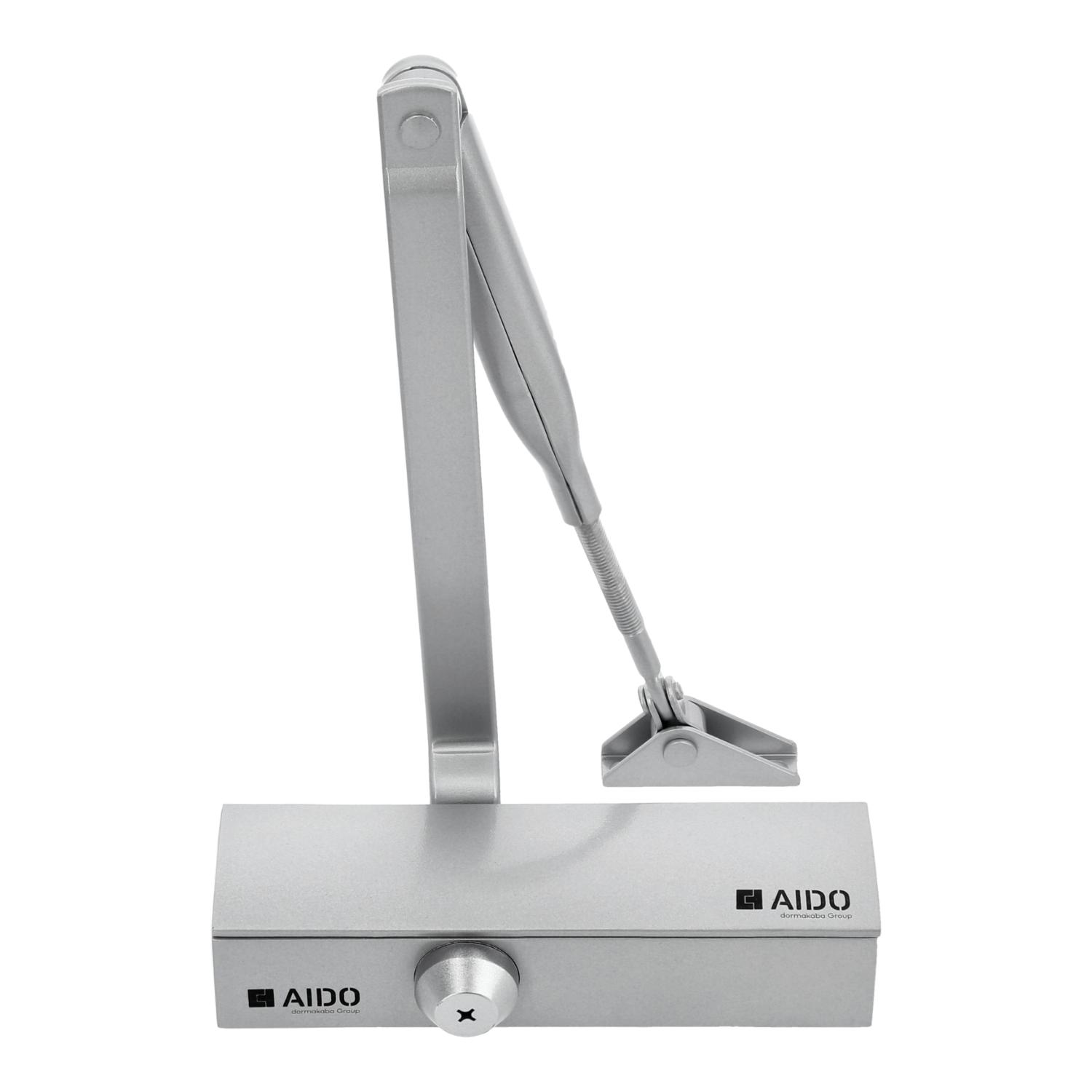

AD 325 size 3 closer with regular arm, silver
- Type
- Regular-arm package
- Finish
- Silver
- Product number
- 1405177
- Availability
- Available

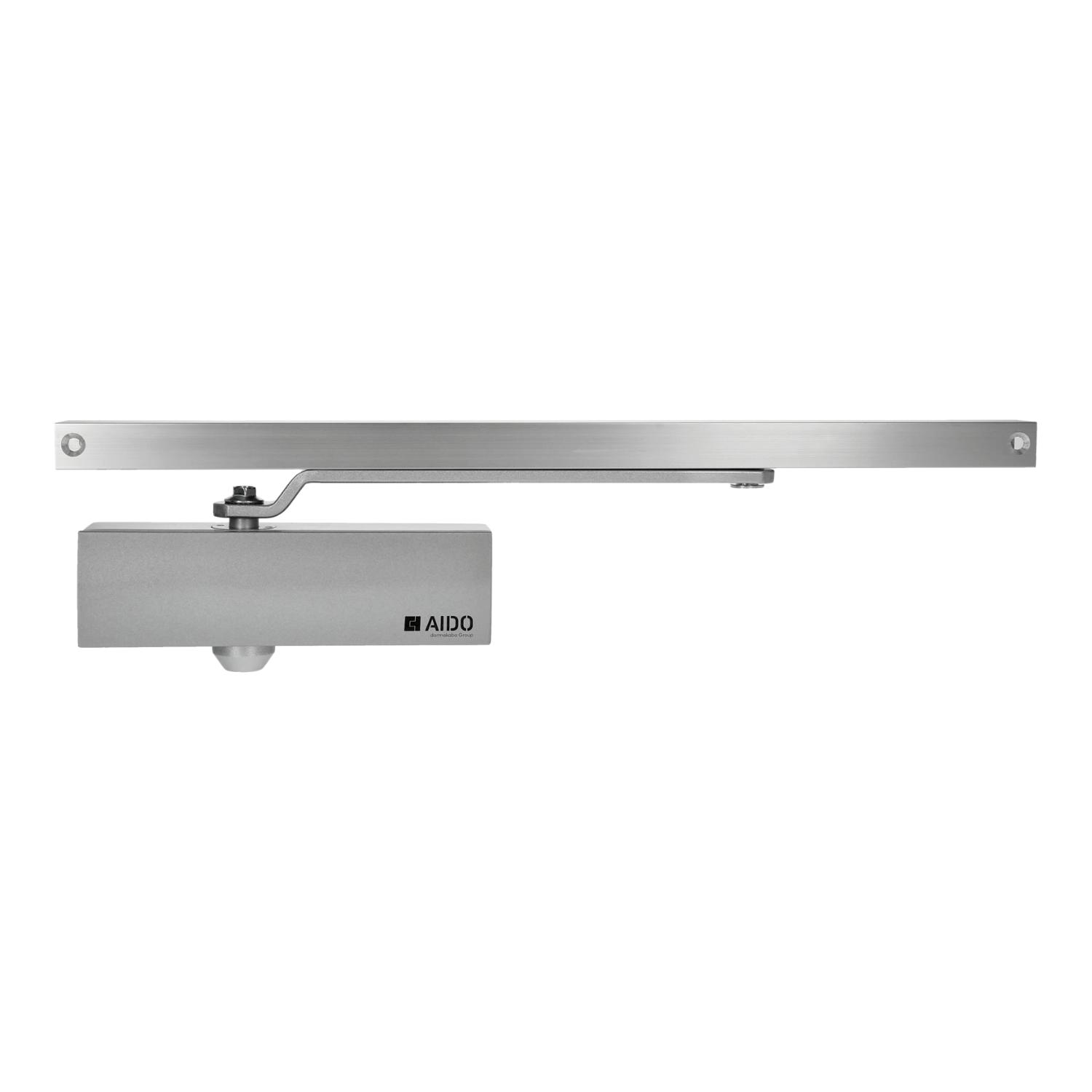

AD 325 size 3 closer with slide arm and hold-open, silver
- Type
- Hold-open slide-arm package
- Finish
- Silver
- Product number
- 1405178
- Availability
- Available
Documents and care
- Data sheet
AD 325 door closer data sheet
Data sheet · PDF · [Size]
- Installation guide
AD 325 door closer installation guide
Installation guide · PDF · [Size]
- Brochure
AIDO Philippines product brochure
Brochure · PDF · [Size]
Buy from an authorised retailer
Authorised retailers can confirm stock, finishes and price for the AD 325.
Find a retailerAsk us about the AD 325
Questions about door size, weight or installation? Send us the details.
